Introducing the EFZ-ESP32S3

· 4 min read
Huu Nghia
Huu Nghia
Embedded Firmware Engineer

The board is here. We built the one this course always needed — an ESP32-S3 with every peripheral a Zephyr lesson touches already on it, flashed and debugged over a single USB-C cable. Meet the EFZ-ESP32S3.

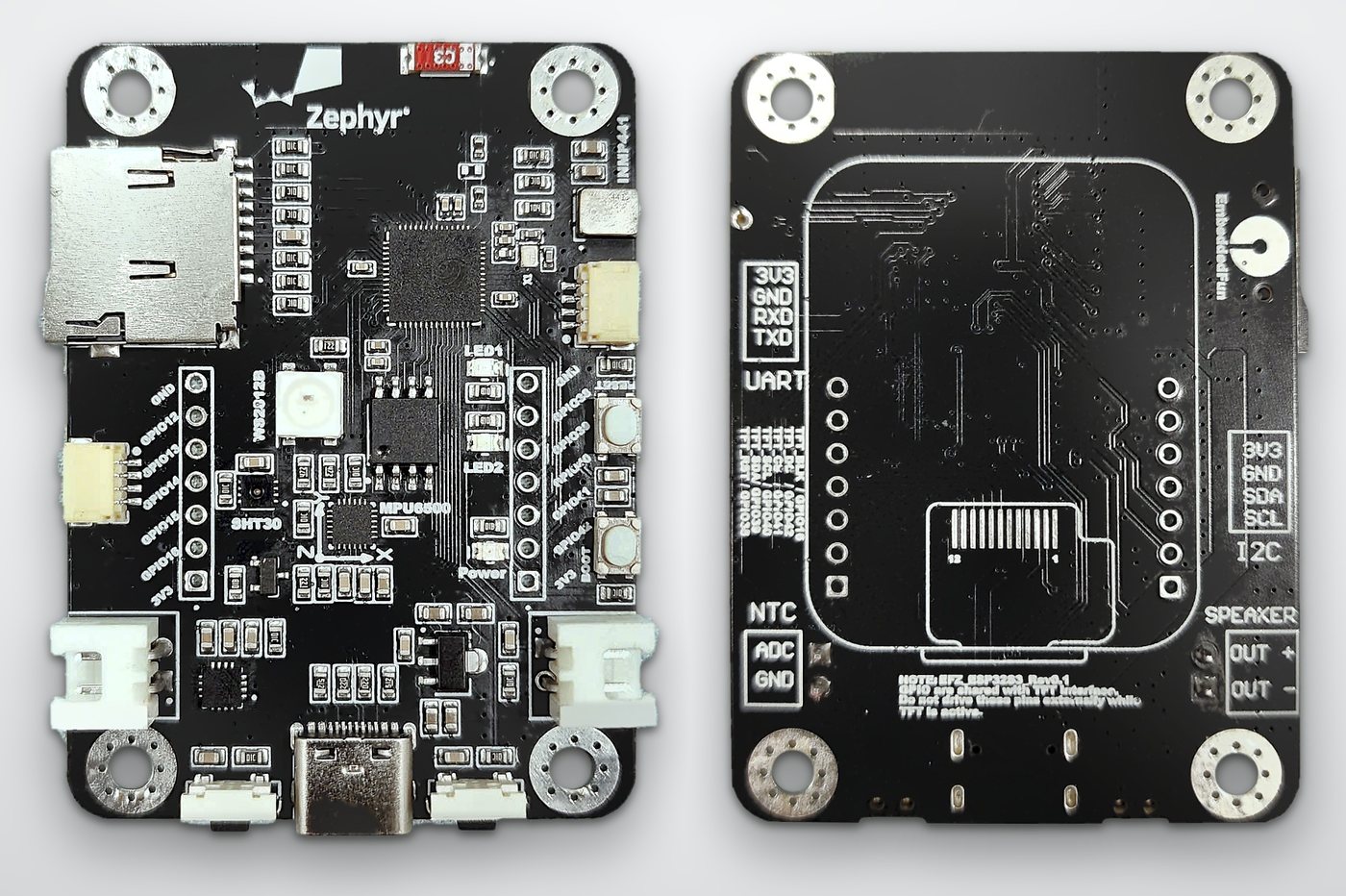

EFZ-ESP32S3 — front and back

Why we built our own board​

You can learn a lot on a dev kit. But a dev kit is a bare chip on a breakout — the moment a lesson needs a sensor, a microphone, an SD card, or a screen, you're on a breadboard with jumper wires, and half the time you spend debugging is debugging the wiring, not the firmware.

We wanted the opposite: a board where the hardware is never the variable. Where "read the sensor" means read the sensor, not "wire up the sensor, hope the pull-ups are right, then read it." So we designed one.

What's on it​

The EFZ-ESP32S3 is a bare ESP32-S3 (dual-core Xtensa LX7, Wi-Fi + Bluetooth LE) with 8 MB of external flash — and the parts every lesson in the course actually uses, soldered on and already described in the devicetree:

  • 🌡️ SHT30 temperature + humidity sensor (I²C)
  • 🎛️ MPU-6500 6-axis IMU with an interrupt line (I²C)
  • 🌈 A WS2812 RGB LED, plus two plain LEDs and three buttons
  • 📈 An NTC thermistor on the ADC
  • 🎙️ An INMP441 microphone and a MAX98357A speaker amp (I²S audio)
  • 💾 A microSD slot (4-bit SDIO, FAT)
  • 🖥️ A TFT display connector on the back
  • 🔌 Broken-out I²C / UART / SPI headers for your own wiring

Everything is powered, flashed, and debugged over one USB-C cable — the ESP32-S3's native USB Serial/JTAG is the console, so there's no separate programmer to buy.

The part we're proudest of​

It's not a feature on the silkscreen. It's that every example in the course runs on this board, and we verified every one of them on it — the real console output, the real errors, the real fixes on the lesson pages are from this hardware, not from a simulator or a hand-wave. The board has upstream-style Zephyr board support (hardware model v2), so west build -b efz_esp32s3/esp32s3/procpu just works, from your first Blinky to a signed, field-updatable image.

That's the whole point of EmbeddedFun: real code, real hardware, real results. The EFZ-ESP32S3 is what makes the "real hardware" part true.

Who it's for​

  • Engineers learning Zephyr who want to follow the course on the exact board it was written for — no wiring, no guesswork.
  • Teachers and workshops who need a kit where every student's hardware is identical.
  • Tinkerers who want a capable ESP32-S3 board with sensors, audio, storage, and a screen, ready to hack on.

Board resources​

Everything you need to build on it, or build your own board from it:

It's here​

The boards have arrived, and every lesson on this site has been run on one.

Want one? Watch the GitHub repo and keep an eye on the Build Diary — details on how to get your hands on an EFZ-ESP32S3 will be posted here first.

In the meantime, everything the board does, you can read end to end in Zephyr Training — and it all runs, verified, on the board you see above.
